CONVEX MIRRORS - EXTERNAL

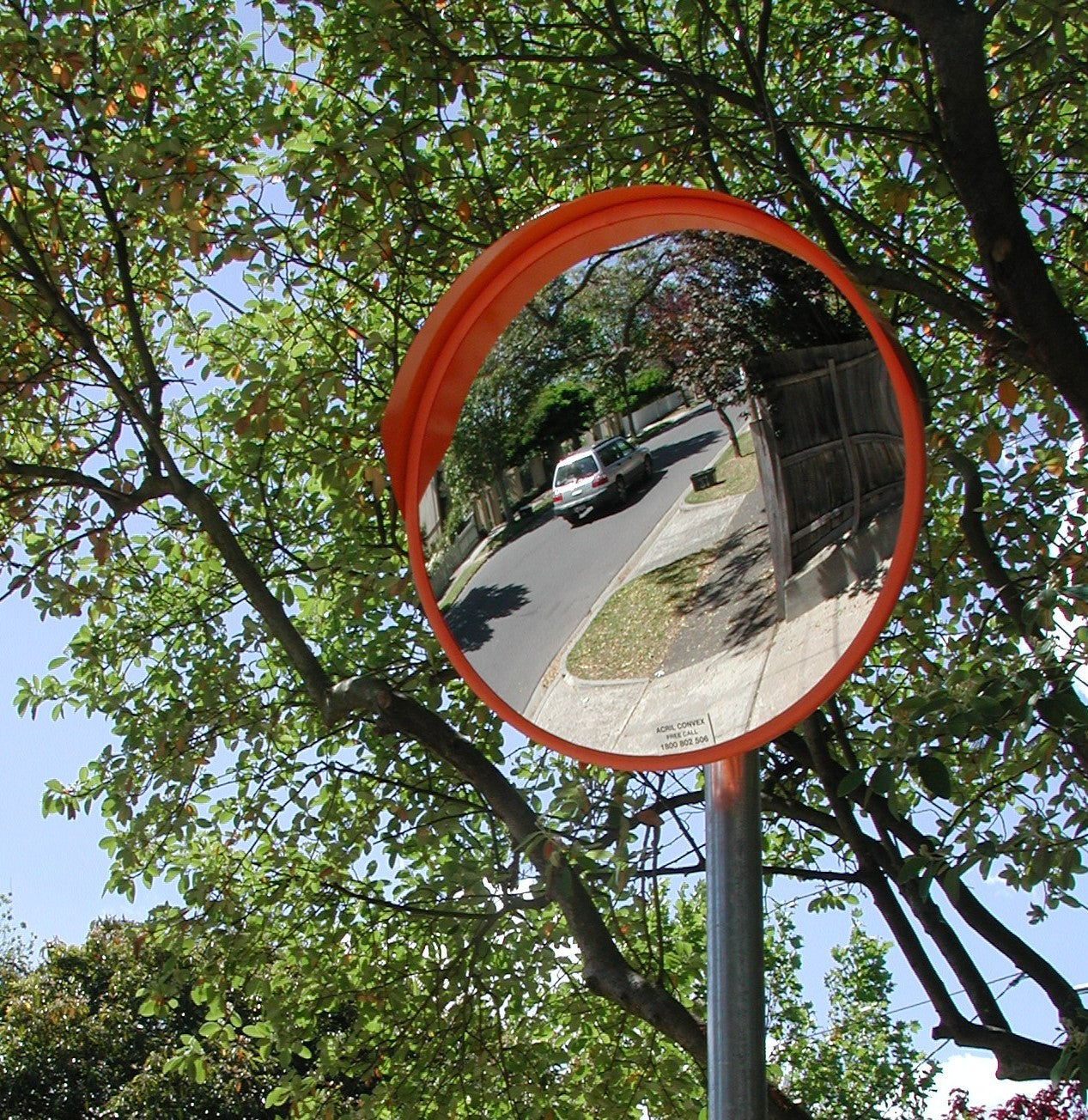

Our external convex mirrors are an industrial quality, acrylic convex safety mirror with a highly visible, weatherproof fibre-glass backing that caters for indoor and outdoor applications. The mirrors incorporate heavy duty steel mounting brackets for windy conditions and makes it an ideal Traffic Mirror and blindspot mirror. The mirrors incorporate heavy duty steel mounting brackets for windy conditions. This outdoor convex safety mirror is speciality manufactured for outdoor and traffic use. Convex mirrors increase visability and workplace safety in areas where there may be traffic such as vehicles and forklifts.
- Crystal clear images
- Reliable mounting brackets
- Inexpensive security
- Long life, impact resistant acrylic faces
- Easy to install - simple instructions supplied
- Easy adjustment to suit your viewing needs
- No maintenance required
Internal or external? Both our internal and external safety mirrors are weatherproof. However, the external convex mirrors feature stronger brackets capable of tolerating windy conditions and visor to minimize sun glare.
MIRROR SELECTION GUIDE: Selecting the right size of mirror is important. The table below gives a good indication to the viewing distances each mirror is suited for. Work out your combined viewing distance by adding the distance from the viewer to the mirror and the distance from the mirror to the object/person to be viewed (see below image). Match this distance with the chart below to obtain the right size mirror for your application. If in doubt, always choose the larger size mirror.
Viewing Distance: To get the viewing distance, add the distance from the Viewer to the mirror and then from the object/area you need to see. (See included diagram in the images). Then refer to the chart below:
| Viewing Distance |
Mirror Diameter
|
Included Bracket |
| Up to 8 Metres |
450mm
|
Wall Mount and 60mm Outside Diameter Post Bracket |
| Up to 12 Metres |
600mm
|
Wall Mount and 60mm Outside Diameter Post Bracket |
| Up to 20 Metres |
800mm
|
76mm Outside Diameter Post Bracket |
All our mirrors are shipped for free within New Zealand. Need help deciding on the right mirror? Call us on 07 846 3089 or email sales@pwsonline.co.nz.
